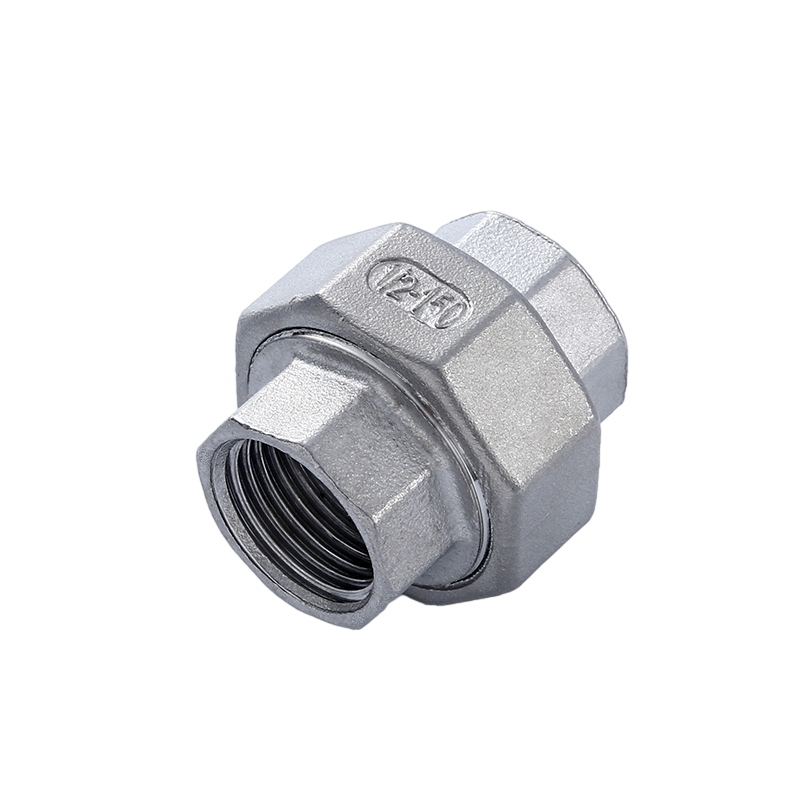

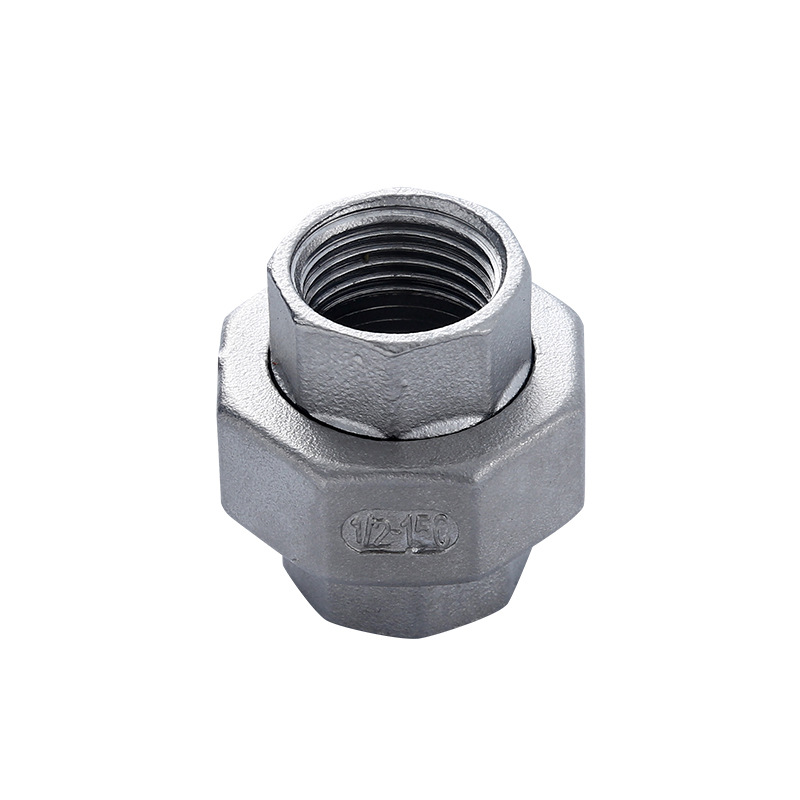

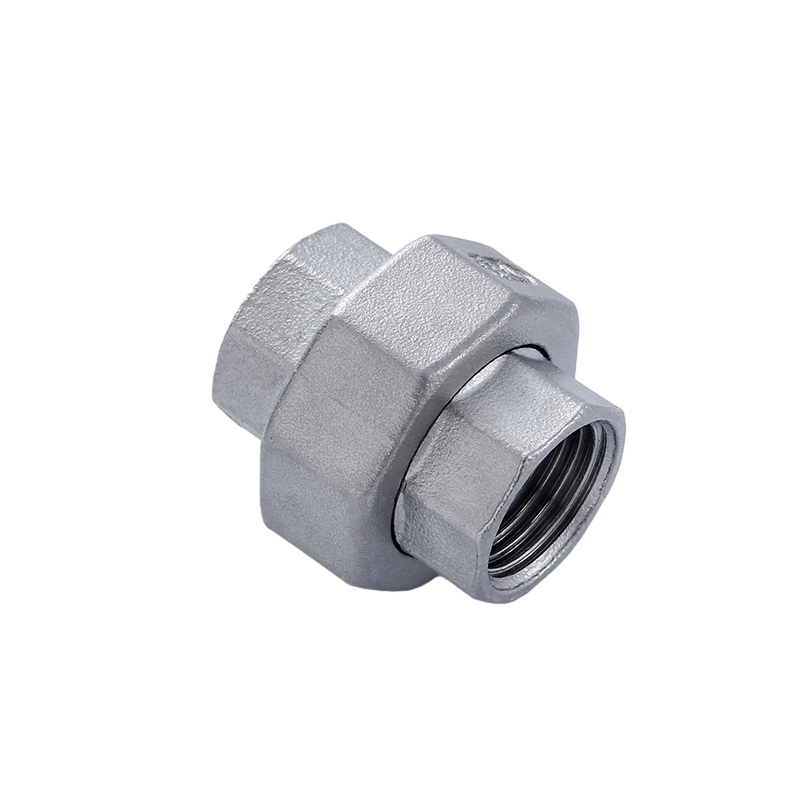

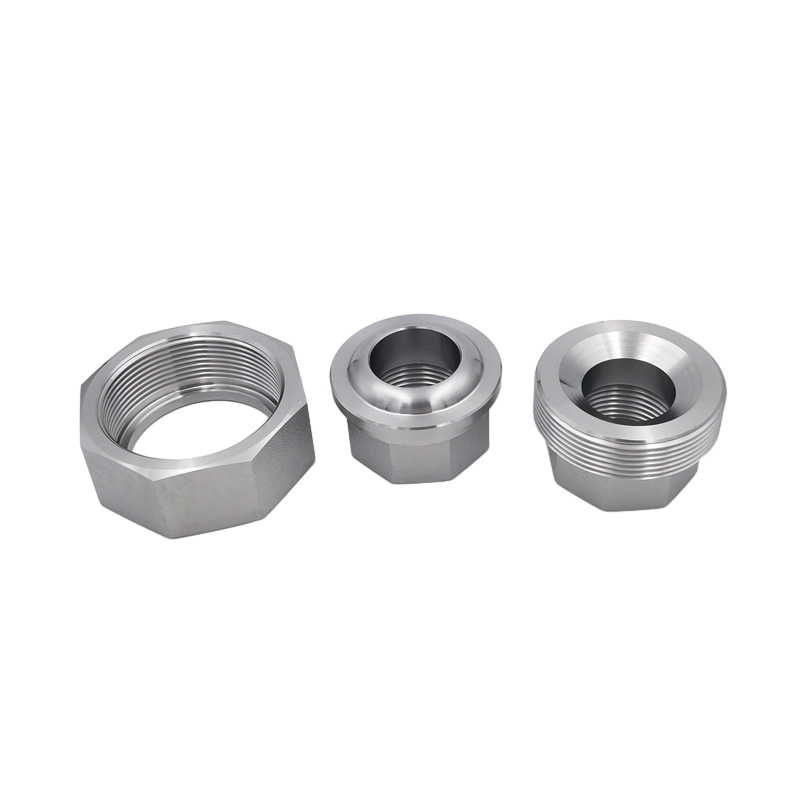

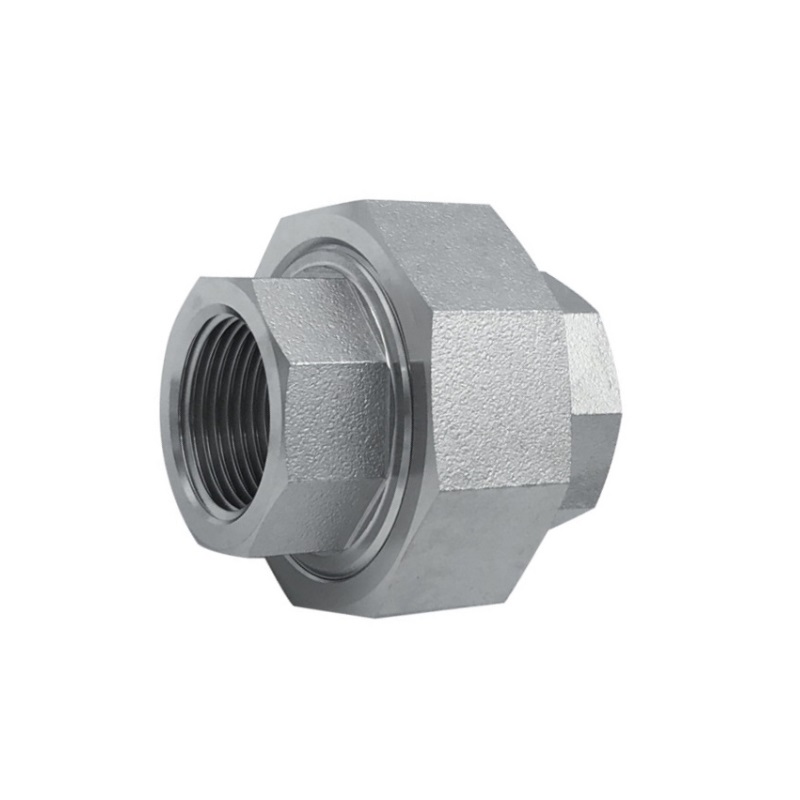

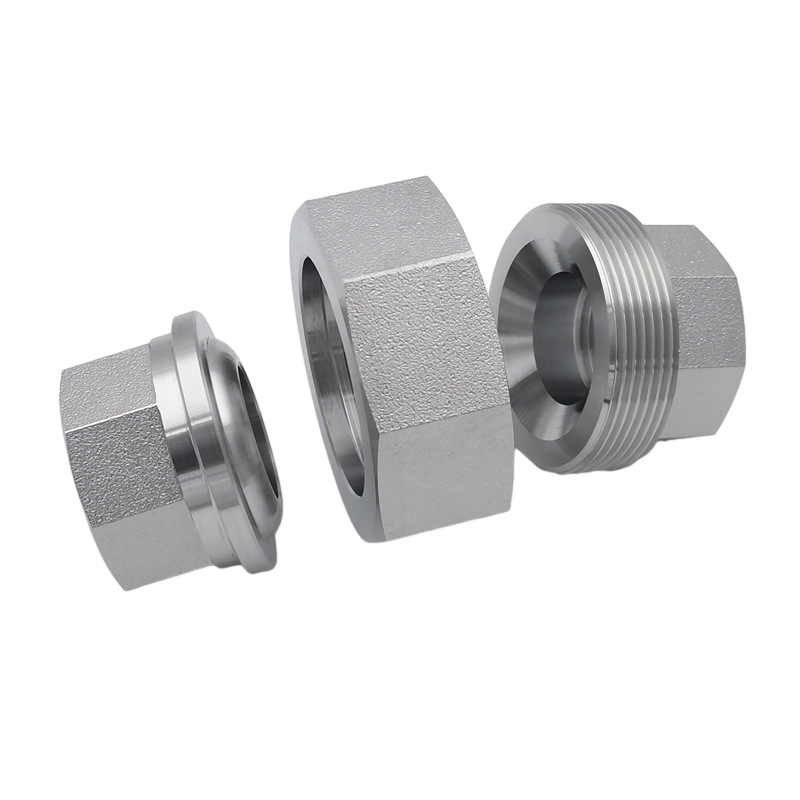

150# 304 Stainless Steel Cast Unions 1/8 "-3" Threaded Union Pipe Fitting

Item

Hindi kinakalawang na Steel Union

Pamantayan

ASTM, DIN, JIS, ISO, GB Pamantayan

Materyal

Hindi kinakalawang na asero 304/316L

Ibabaw

Pagsabog ng buhangin

I -type

Cast

laki

1/8 "-3"

Oras ng paghahatid

Sa loob ng 5-30 araw pagkatapos matanggap ang prepaid

Pag -iimpake

Kaso sa kahoy

Application

supply ng tubig, petrolyo, proteksyon sa kapaligiran, industriya ng kemikal, pagkain, kuryente, konstruksyon, dumi sa alkantarilya,

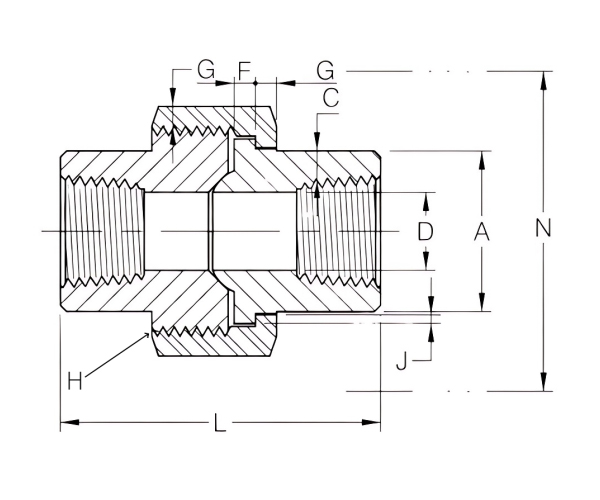

NPS

A

C

D (max)

D (min)

F

G

H

(Thrds/in)

J (min)

L

N

1/8 "

14.7

2.41

8.43

6.34

3.18

3.18

16

1.24

41.4

50.8

1/4 "

19

3.02

11.13

9.45

3.18

3.18

16

1.24

41.4

50.8

3/8 "

22.9

3.2

14.27

13.51

3.43

3.43

14

1.37

46

55.9

1/2 "

27.7

3.73

17.86

17.07

3.68

3.68

14

1.5

49

58.4

3/4 "

33.5

3.91

23.01

21.39

4.06

4.06

11

1.68

56.9

66

1 "

41.4

4.55

28.98

27.74

4.57

4.45

11

1.85

62

78.7

1 1/4 "

50.5

4.85

37.69

35.36

5.33

5.21

10

2.13

71.1

94

1 1/2 "

57.2

5.08

43.54

41.2

5.84

5.59

10

2.31

76.5

111.8

2 "

70.1

5.54

55.58

52.12

6.60

6.35

10

2.69

86.1

132.1

2 1/2 "

85.3

7.01

66.27

64.31

7.49

7.11

8

3.07

102.4

149.9

3 "$

102.4

7.62

88.25

77.27

8.26

8.00

8

3.53

109

175.3
