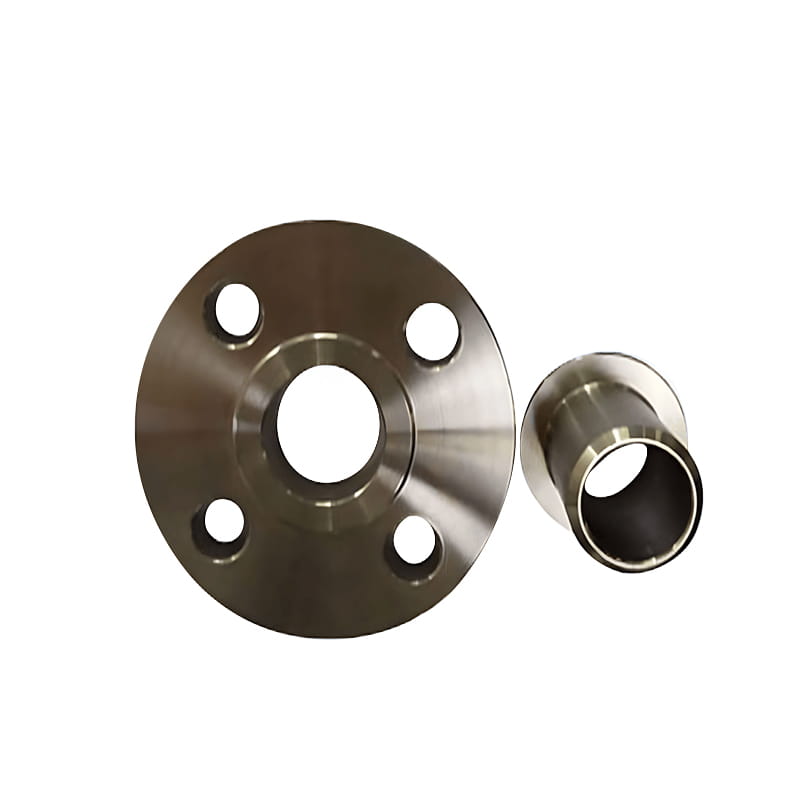

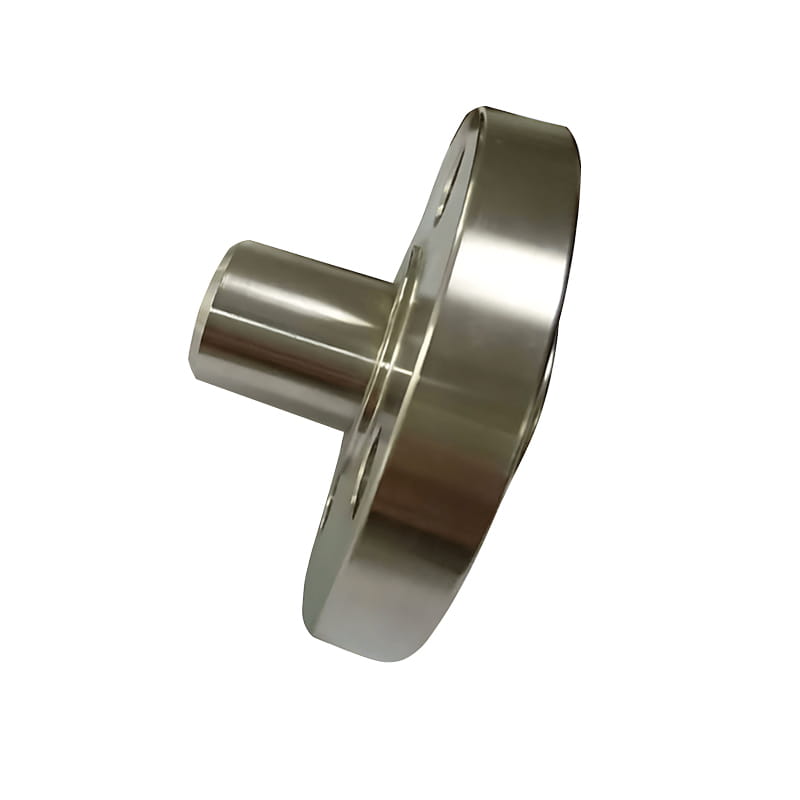

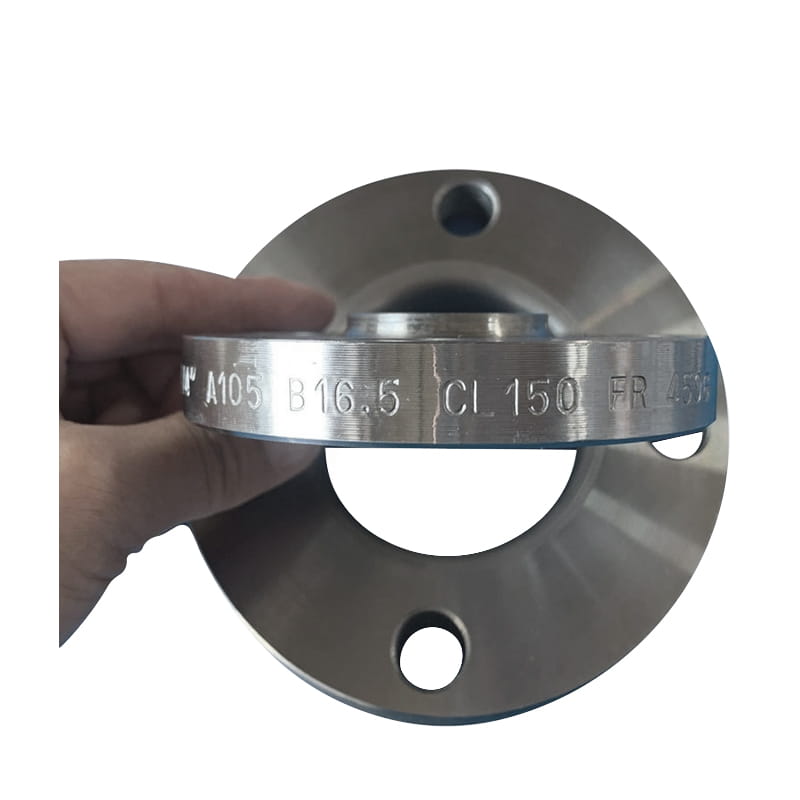

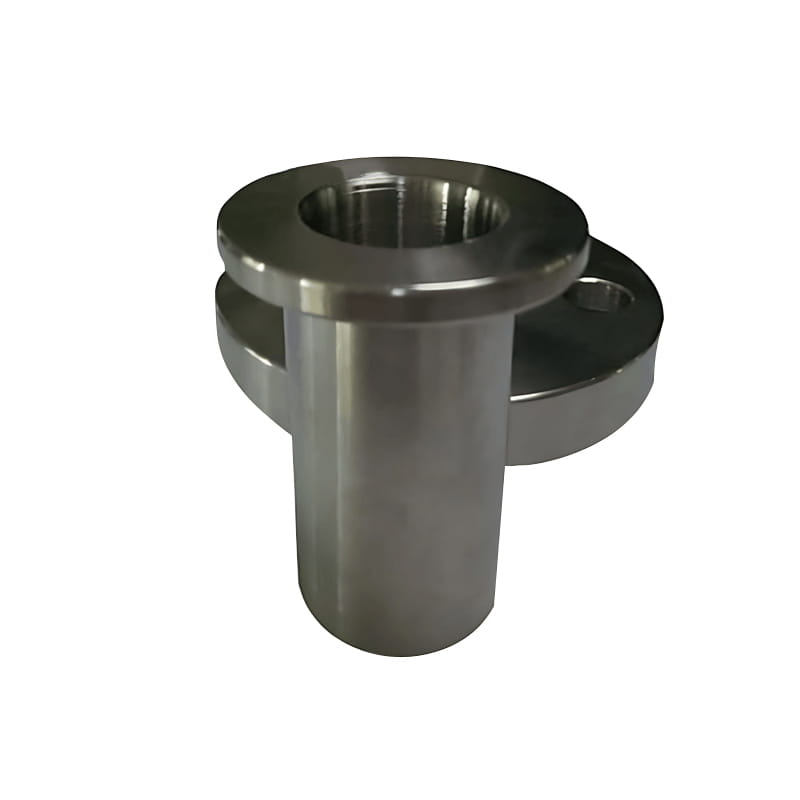

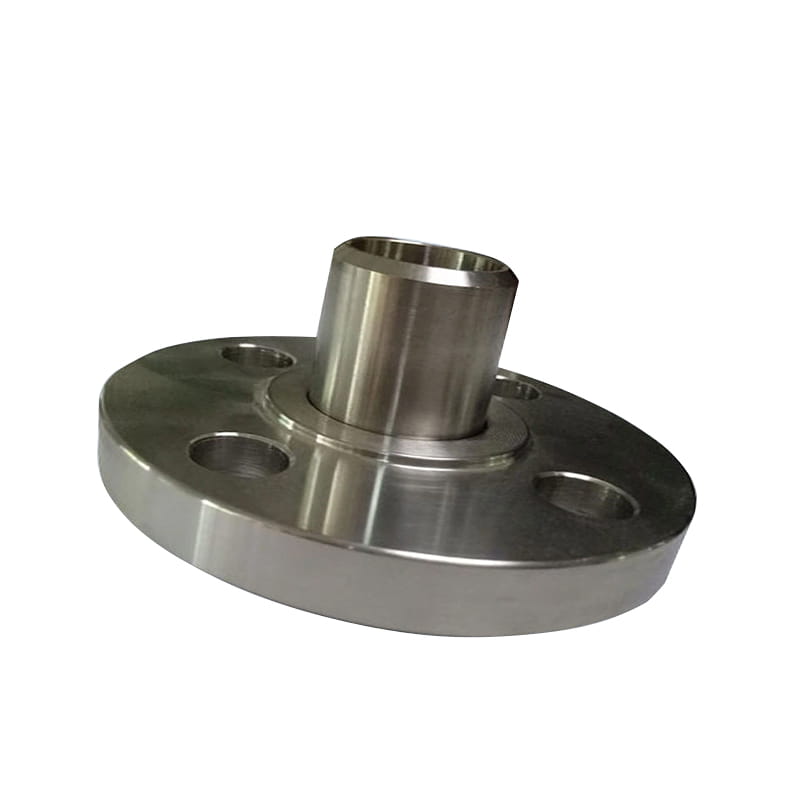

Polishing hindi kinakalawang na asero lap joint flange Assembly Mga Supplier, OEM/ODM Manufacturer - Xinhang Special Material Co., Ltd. Hangzhou Branch

Panimula

Pamantayan	ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, DIN, SABS1123, GOST-12820
Materyal	Hindi kinakalawang na asero, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nickel (200/201), Monel (400 & K500), Inconel (600, 601, 625 & 825), Insolloy (800, 800H),,, SS 904L, Titanium (1 & 2) atbp.
Ibabaw	Anti-rust oil, pagpipinta (itim, dilaw), galvanizing, power coating
I -type	Pagpipilit, Pagproseso ng CNC
laki	½ pulgada - 24 pulgada
Oras ng paghahatid	Sa loob ng 5-30 araw pagkatapos matanggap ang prepaid
Pag -iimpake	Plywood Pallet, Wooden Pallet, Wooden Case, atbp.
Application	Electric Power, Oil Field, Shipbuilding, Offshore, Water Systems, Natural Gas, Pipe Proyekto, atbp.

Klase 150 lb

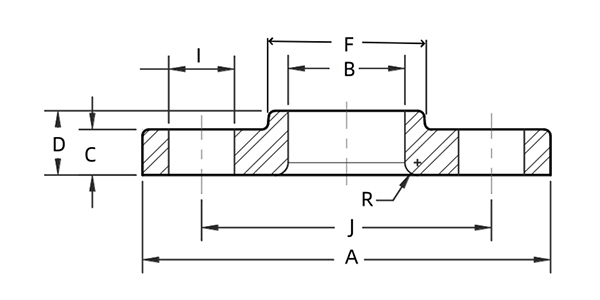

Nomsaal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
sa	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	88.90	22.90	11.20	15.70	3.00	30.20	4	15.70	60.45	0.38
¾	26.70	98.60	28.20	12.70	15.70	3.00	38.10	4	15.70	69.85	0.55
1	33.40	108.00	35.10	14.20	17.50	3.00	49.30	4	15.70	79.25	0.76
1 ¼	42.20	117.30	43.70	15.70	20.60	4.80	58.70	4	15.70	88.90	1.01
1 ½	48.30	127.00	50.00	17.50	22.40	6.40	65.00	4	15.70	98.60	1.30
2	60.30	152.40	62.50	19.10	25.40	7.90	77.70	4	19.10	120.70	2.03
2 ½ $	73.00	177.80	75.40	22.40	28.40	7.90	90.40	4	19.10	139.70	3.25
3	88.90	190.50	91.40	23.90	30.20	9.70	108.00	4	19.10	152.40	3.81
3 ½	101.60	215.90	104.10	23.90	31.75	9.70	122.20	8	19.10	177.80	4.76
4	114.30	228.60	116.80	23.90	33.30	11.20	134.90	8	19.10	190.50	5.25
5	141.30	254.00	114.50	23.90	36.60	11.20	163.60	8	22.40	215.90	6.02
6	168.30	279.40	171.50	25.40	39.60	12.70	192.00	8	22.40	241.30	7.40
8	219.10	342.90	222.30	28.40	44.50	12.70	246.10	8	22.40	298.50	12.10
10	273.00	406.40	277.40	30.20	49.30	12.70	304.80	12	25.40	362.00	16.40
12	323.80	482.60	328.20	31.75	55.60	12.70	365.30	12	25.40	431.80	26.10
14	355.60	533.40	360.20	35.10	79.25	12.70	400.10	12	28.40	476.30	34.50
16	406.40	596.90	411.20	36.60	87.40	12.70	457.20	16	28.40	539.80	44.60
18	457.20	635.00	462.30	39.60	96.80	12.70	505.00	16	31.75	577.90	48.70
20	508.00	698.50	514.40	42.90	103.10	12.70	558.80	20	31.75	635.00	61.60
24	609.60	812.80	616.00	47.80	111.30	12.70	663.40	20	35.10	749.30	86.60

Klase 300 lb

Nomsaal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
sa	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	95.20	22.90	14.20	22.30	3.00	38.10	4	15.70	66.55	0.62
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.70	4	19.00	82.50	1.10
1	33.40	123.90	35.10	17.50	26.90	3.00	53.80	4	19.00	88.90	1.33
1 ¼	42.20	133.30	43.70	19.00	26.90	4.80	63.50	4	19.00	98.50	1.65
1 ½	48.30	155.4	50.00	20.60	30.20	6.40	69.85	4	22.30	114.30	2.44
2	60.30	165.10	62.50	22.30	33.20	7.90	84.00	8	19.10	127.00	2.83
2 ½	73.00	190.50	75.40	25.40	38.10	7.90	100.00	8	22.30	149.30	4.25
3	88.90	209.50	91.40	28.40	42.90	9.70	117.30	8	22.30	168.10	5.78
3 ½	101.60	228.60	104.10	30.20	44.40	9.70	133.30	8	22.30	184.10	7.27
4	114.30	254.00	116.80	31.70	47.70	11.20	146.00	8	22.30	200.10	9.55
5	141.30	279.40	114.50	35.00	50.80	11.20	177.80	8	22.30	234.90	12.20
6	168.30	317.50	171.50	36.50	52.30	12.70	206.20	12	22.30	267.70	15.50
8	219.10	381.00	222.30	41.10	61.90	12.70	260.30	12	25.40	330.20	24.10
10	273.00	444.50	277.40	47.70	95.20	12.70	320.50	16	28.40	387.30	34.40
12	323.80	520.70	328.20	50.80	101.60	12.70	374.60	16	31.70	450.80	50.40
14	355.60	584.20	360.20	53.80	111.20	12.70	425.40	20	31.70	514.3	70.90
16	406.40	647.70	411.20	57.15	120.60	12.70	482.60	20	35.00	571.50	89.50
18	457.20	711.20	462.30	60.45	130.00	12.70	533.40	24	35.00	628.60	111.00
20	508.00	774.70	514.40	63.50	139.70	12.70	587.20	24	35.00	685.80	137.00
24	609.60	914.40	616.00	69.80	152.40	12.70	701.50	24	41.10	812.80	204.00

Klase 400 lb

Nomsaal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
sa	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	95.30	22.90	14.20	22.40	3.00	38.10	4	15.70	66.55	0.72
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.80	4	19.10	82.60	1.25
1	33.40	124.00	35.10	17.50	26.90	3.00	53.80	4	19.10	88.90	1.50
1 ¼	42.20	133.40	43.70	20.60	28.40	4.80	63.50	4	19.10	98.60	2.00
1 ½	48.30	155.40	50.00	22.40	31.75	6.40	69.85	4	22.40	114.30	2.92
2	60.30	165.10	62.50	25.40	36.60	7.90	84.10	8	19.10	127.00	3.55
2 ½	73.00	190.50	75.40	28.40	41.10	7.90	100.10	8	22.40	149.40	5.23
3	88.90	209.60	91.40	31.75	46.00	9.70	117.30	8	22.40	168.10	6.95
3 ½	101.60	228.60	104.10	35.10	49.30	9.70	133.40	8	25.40	184.20	8.78
4	114.30	254.00	116.80	35.10	50.80	11.20	146.10	8	25.40	200.20	10.90
5	141.30	279.40	114.50	38.10	53.80	11.20	177.80	8	25.40	235.00	13.70
6	168.30	317.50	171.50	41.10	57.15	12.70	206.20	12	25.40	269.70	18.00
8	219.10	381.00	222.30	47.80	68.30	12.70	260.40	12	28.40	330.20	28.30
10	273.00	445.00	277.40	53.80	101.60	12.70	320.50	16	31.75	387.40	38.80
12	323.80	520.70	328.20	57.15	108.00	12.70	374.70	16	35.10	450.90	56.60
14	355.60	584.20	360.2	60.45	117.30	12.70	425.50	20	35.10	514.40	78.60
16	406.40	647.70	411.20	63.50	127.00	12.70	482.60	20	38.10	571.50	100.00
18	457.20	711.20	462.30	66.55	136.70	12.70	533.40	24	38.10	628.70	122.00
20	508.00	774.70	514.40	69.85	146.10	12.70	587.20	24	41.10	685.80	145.00
24	609.60	914.40	616.00	76.20	158.80	12.70	701.50	24	47.80	812.80	217.00

Klase 600 lb

Nomsaal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	95.30	22.90	14.20	22.40	3.00	38.10	4	15.70	66.55	0.72
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.80	4	19.10	82.60	1.25
1	33.40	124.00	35.10	17.50	26.90	3.00	53.80	4	19.10	88.90	1.50
1 ¼	42.20	133.40	43.70	20.60	28.40	4.80	63.50	4	19.10	98.60	2.00
1 ½	48.30	155.4	50.00	22.40	31.75	6.40	69.85	4	22.40	114.30	2.92
2	60.30	165.10	62.50	25.40	36.60	7.90	84.10	8	19.10	127.00	3.55
2 ½	73.00	190.50	75.40	28.40	41.10	7.90	100.10	8	22.40	149.40	5.23
3	88.90	209.60	91.40	31.75	46.00	9.70	117.30	8	22.40	168.10	6.95
3 ½	101.60	228.60	104.10	35.10	49.30	9.70	133.40	8	25.40	184.20	8.78
4	114.30	273.10	116.80	38.10	53.80	11.20	152.40	8	25.40	215.9	14.40
5	141.30	330.20	114.50	44.50	60.45	11.20	189.00	8	28.40	266.70	24.30
6	168.30	355.60	171.50	47.80	66.55	12.70	222.30	12	28.40	292.10	28.50
8	219.10	419.10	222.30	55.60	76.20	12.70	273.10	12	31.75	349.30	43.10
10	273.00	508.00	277.40	63.50	111.30	12.70	342.90	16	35.10	431.80	70.50
12	323.80	558.80	328.20	66.55	117.30	12.70	400.10	20	35.10	489.00	86.10
14	355.60	603.30	360.20	69.85	127.00	12.70	431.80	20	38.10	527.10	100.00
16	406.40	685.80	411.20	76.20	139.70	12.70	495.30	20	41.10	603.30	145.00
18	457.20	743.00	462.30	82.60	152.40	12.70	546.10	20	44.50	654.10	177.00
20	508.00	812.80	514.40	88.90	165.10	12.70	609.60	24	44.50	723.90	225.00
24	609.60	939.80	616.00	101.60	184.20	12.70	717.60	24	50.80	838.20	318.00

Klase 900 lb

Nominal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	120.60	22.90	22.30	31.70	3.00	38.10	4	22.30	82.50	1.71
¾	26.70	130.00	28.20	25.40	35.00	3.00	44.40	4	22.30	88.90	2.30
1	33.40	149.30	35.10	28.40	41.10	3.00	52.30	4	25.40	101.60	3.40
1 ¼	42.20	158.70	43.70	28.40	41.10	4.80	63.50	4	25.40	111.20	3.85
1 ½	48.30	177.80	50.00	31.70	44.40	6.40	69.85	4	28.40	123.90	5.28
2	60.30	215.90	62.50	38.10	57.15	7.90	104.60	8	25.40	165.10	9.78
2 ½	73.00	244.30	75.40	41.10	63.50	7.90	123.90	8	28.40	190.50	13.60
3	88.90	241.30	91.40	38.10	53.80	9.70	127.00	8	25.40	190.50	11.30
4	114.30	292.10	116.80	44.40	69.85	11.20	158.70	8	31.70	234.90	19.20
5	141.30	349.20	114.50	50.80	79.25	11.20	190.50	8	35.00	279.40	31.20
6	168.30	381.00	171.50	55.60	85.80	12.70	234.90	12	31.70	317.50	40.50
8	219.10	469.90	222.30	63.50	114.30	12.70	298.40	12	38.10	393.70	71.50
10	273.00	546.10	277.40	69.85	127.00	12.70	368.30	16	38.10	469.90	104.00
12	323.80	609.60	328.20	79.25	142.70	12.70	419.10	20	38.10	533.40	139.00
14	355.60	641.30	360.20	85.80	155.40	12.70	450.80	20	41.10	558.80	161.00
16	406.40	704.80	411.20	88.90	165.10	12.70	508.00	20	44.40	615.90	194.00
18	457.20	787.40	462.30	101.60	190.50	12.70	565.10	20	50.80	685.80	267.00
20	508.00	857.20	514.40	107.90	209.50	12.70	622.30	20	53.80	749.30	334.00
24	609.60	1041.40	616.00	139.70	266.70	12.70	749.30	20	66.55	901.70	618.00

Klase 1500 lb

Nominal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	120.60	22.90	22.30	31.70	3.00	38.10	4	22.30	82.50	1.71
¾	26.70	130.00	28.20	25.40	35.00	3.00	44.40	4	22.30	88.90	2.30
1	33.40	149.30	35.10	28.40	41.10	3.00	52.30	4	25.40	101.60	3.40
1 ¼	42.20	158.70	43.70	28.40	41.10	4.80	63.50	4	25.40	111.20	3.85
1 ½	48.30	177.80	50.00	31.70	44.40	6.40	69.85	4	28.40	123.90	5.28
2	60.30	215.90	62.50	38.10	57.15	7.90	104.60	8	25.40	165.10	9.78
2 ½	73.00	244.30	75.40	41.10	63.50	7.90	123.90	8	28.40	190.50	13.60
3	88.90	266.70	91.40	47.70	73.15	9.70	133.30	8	31.70	203.2	17.80
4	114.30	311.10	116.80	53.80	90.40	11.20	162.00	8	35.00	241.30	27.50
5	141.30	374.60	114.50	73.15	104.60	11.20	196.80	8	41.10	292.10	51.50
6	168.30	399.70	171.50	82.50	119.10	12.70	228.60	12	38.10	317.50	62.00
8	219.10	482.6	222.30	91.90	142.70	12.70	292.10	12	44.40	393.70	105.00
10	273.00	584.20	277.40	107.90	177.80	12.70	368.30	12	50.80	482.60	179.00
12	323.80	673.10	328.20	123.90	218.90	12.70	450.80	16	53.80	571.50	269.00
14	355.60	749.30	360.20	133.30	241.30	12.70	495.30	16	60.45	635.00	365.00
16	406.40	825.50	411.20	146.00	260.30	12.70	552.40	16	66.55	704.80	459.00
18	457.20	914.40	462.30	162.00	276.30	12.70	596.90	16	73.15	774.70	598.00
20	508.00	984.20	514.40	177.80	292.10	12.70	641.30	16	79.25	831.80	712.00
24	609.60	1168.40	616.00	203.20	330.20	12.70	726.00	16	91.90	990.60	1090.00

Klase 2500 lb

Nominal Laki ng pipe	Sa labas Diameter	Sa pangkalahatan Diameter	Sa loob Diameter	Flange Kapal	Sa pangkalahatan Haba	Lap Radius	Hub Diameter	Bilang ng mga butas	Bolt Hole Diameter	Diameter ng bilog ng mga butas	Timbang
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	H (mm)	Ako (mm)	J (mm)	kg/ piraso
½	21.30	133.40	22.90	30.20	39.60	3.00	42.90	4	22.40	88.90	2.92
¾	26.70	139.70	28.20	31.75	42.90	3.00	50.80	4	22.40	95.30	3.40
1	33.40	158.80	35.10	35.10	47.80	3.00	57.15	4	25.40	108.00	4.77
1 ¼	42.20	184.20	43.70	38.10	52.30	4.80	73.15	4	28.40	130.00	7.08
1 ½	48.30	203.20	50.00	44.50	60.45	6.40	79.25	4	31.75	146.10	9.93
2	60.30	235.00	62.50	50.80	69.85	7.90	95.30	8	28.40	171.50	14.70
2 ½	73.00	266.70	75.40	57.15	79.25	7.90	114.30	8	31.75	196.90	21.30
3	88.90	304.80	91.40	66.55	91.90	9.70	133.40	8	35.10	228.60	32.30
4	114.30	355.60	116.80	76.20	108.00	11.20	165.10	8	41.10	273.10	52.50
5	141.30	419.10	114.50	91.90	130.00	11.20	203.20	8	47.80	323.90	82.60
6	168.30	482.60	171.50	108.00	152.40	12.70	235.00	8	53.80	368.30	127.00
8	219.10	552.50	222.30	127.00	177.80	12.70	304.80	12	53.80	438.20	186.00
10	273.00	367.10	277.40	165.10	228.60	12.70	374.70	12	66.55	539.80	352.00
12	323.80	762.00	328.20	184.20	254.00	12.70	441.50	12	73.15	619.30	501.00
